Fascination
Collection

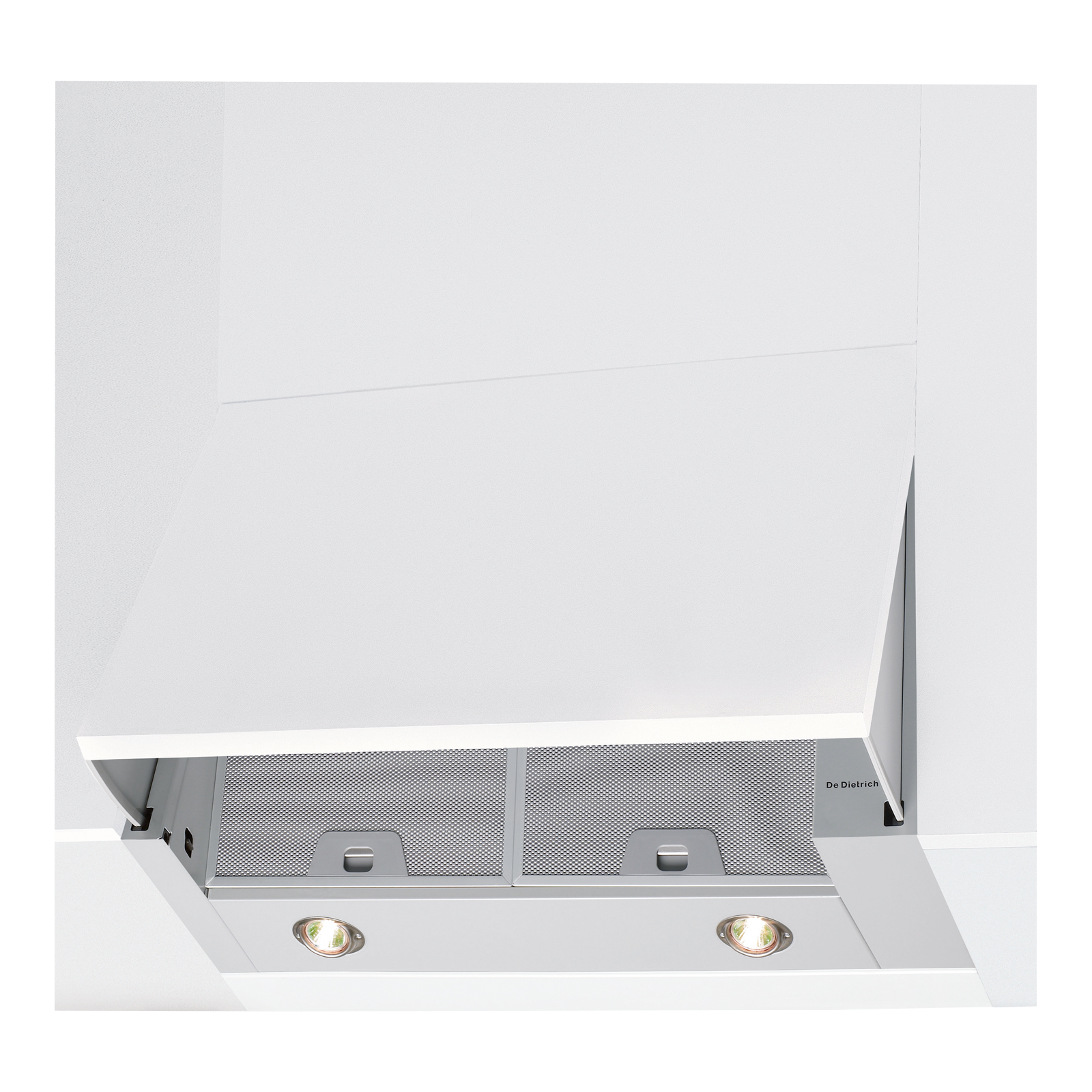

Installed in place of a wall cabinet, a decorative door is supplied for the front of this retractable extractor hood which, when lifted, provides easy access to all controls, activates suction and turns on the halogen lighting system. Its powerful twin-turbine motor gives it maximum suction efficiency which, thanks to the dedicated Boost function, can be reached instantaneously.

colors
Absolute Black
zoom

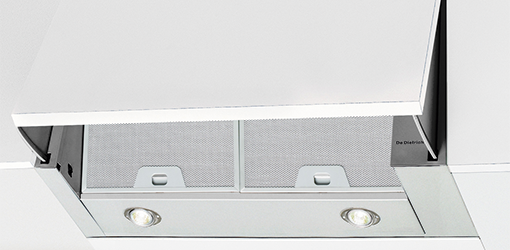

The Utmost Discretion
This retractable hood is installed in place of a wall cabinet above the hob. It is fronted with a decorative door that is matched to other kitchen units and provides easy access to all electronic controls for turning on the extractor or activating the lights when opened.
Saturation Indicator for Grease and Carbon Filters
In order to ensure the hood works at maximum effi ciency, we recommend that grease fi lters are cleaned and the carbon fi lter is changed regularly. This warning light illuminates when grease has built up on the fi lters and they need cleaning or replacing.
Delayed Stop Function
This system has been designed to totally eradicate any residual postcooking vapours. The hood continues to function for ten minutes after the last speed is selected, then turns itself off automatically.
Boost Function
When selected, this feature immediately sets the hood to work at maximum extraction speed for even greater efficiency when large amounts of vapour or cooking aromas are present.

Download :

Main Specifications
Type of hoods:
Integrated hood
Output air extraction (m3/h):
740
Width (cm):
60
Control panel
Type of control:
Electronic
Boost position:
Without
Lighting
Number of lights:
2
Light position:
Rear
Type of bulb:
Halogen
Lighting power (W):
20
Performances
Number of speed positions:
4
Acoustic power level (recycling) (dBA):
48
Boost position air extraction (m3/h):
830
Filtering
No-return airflow clap:
Yes
Optional accessories:
Characoal filter
Dimensions
Height of product without chimmey (mm):
450
Dimensions of product HxWxD (mm):
450X598X265
Dimensions of the packed product HxWxD (mm):
550X680X350
Gross weight (kg):
15,57
Net weight (kg):
14,07
Connections
Voltage (V):
230
Frequency (Hz):
50
Current (A):
10
Connection rating (W):
380
