Platinum

Hood

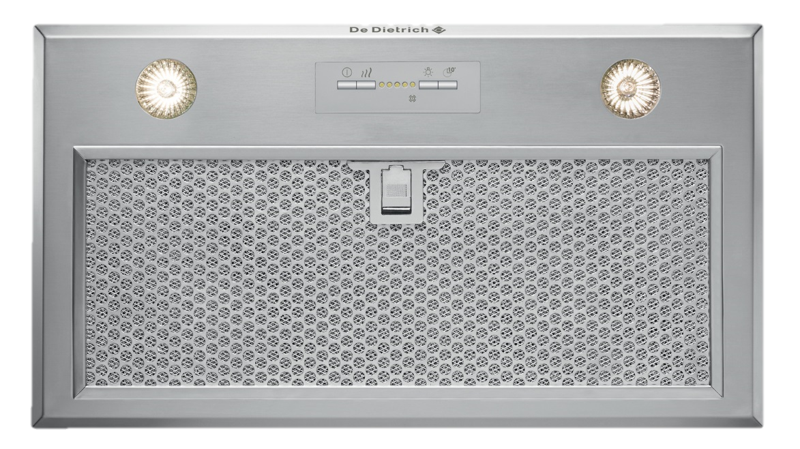

DHG1136X
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 214.21ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;
Fascination
Collection

Delayed stop This function delayes the stop of extraction for several minutes after the cooking is done in order to evacuate smokes completely. Powerful extraction A maximum of extraction in order to recycle air regularity anc effeciently. Carbon filter The activated carbon filter is delivered with the hood in order to recycle air in an effective manner.

colors
Absolute Black
zoom
Delayed Stop function.
This system has been designed to totally eradicate any residual postcooking vapours. The hood continues to function for ten minutes after the last speed is selected, then turns itself off automatically.
Boost function.
When selected, this feature immediately sets the hood to work at maximum extraction speed for even greater efficiency when large amounts of vapour or cooking aromas are present.

Download :

Main Specifications
Type of hoods:
Filtering unit
Output air extraction (m3/h):
664
Width (cm):
60
Control panel
Type of control:
Electronic
Boost position:
With
Lighting
Number of lights:
2
Light position:
Front
Type of bulb:
Halogen
Lighting power (W):
20
Performances
Number of speed positions:
3
Acoustic power level (recycling) (dBA):
49.2
Max recycling air extraction (m3/h):
373
Boost position output recirculating (m3/h):
424
Boost position air extraction (m3/h):
840
Minimum evacuation sound level (dBA):
55.2
Max evacuation sound level (dBA):
70.3
Filtering
Number of filters:
2
No-return airflow clap:
Yes
Accessories:
Characoal filter
Dimensions
Height of product without chimmey (mm):
252
Dimensions of product HxWxD (mm):
252X524X289
Dimensions of the packed product HxWxD (mm):
356X650X357
Gross weight (kg):
8,96
Net weight (kg):
6.2
Connections
Voltage (V):
230
Frequency (Hz):
50
Current (A):
16
Connection rating (W):
355
