Platinum

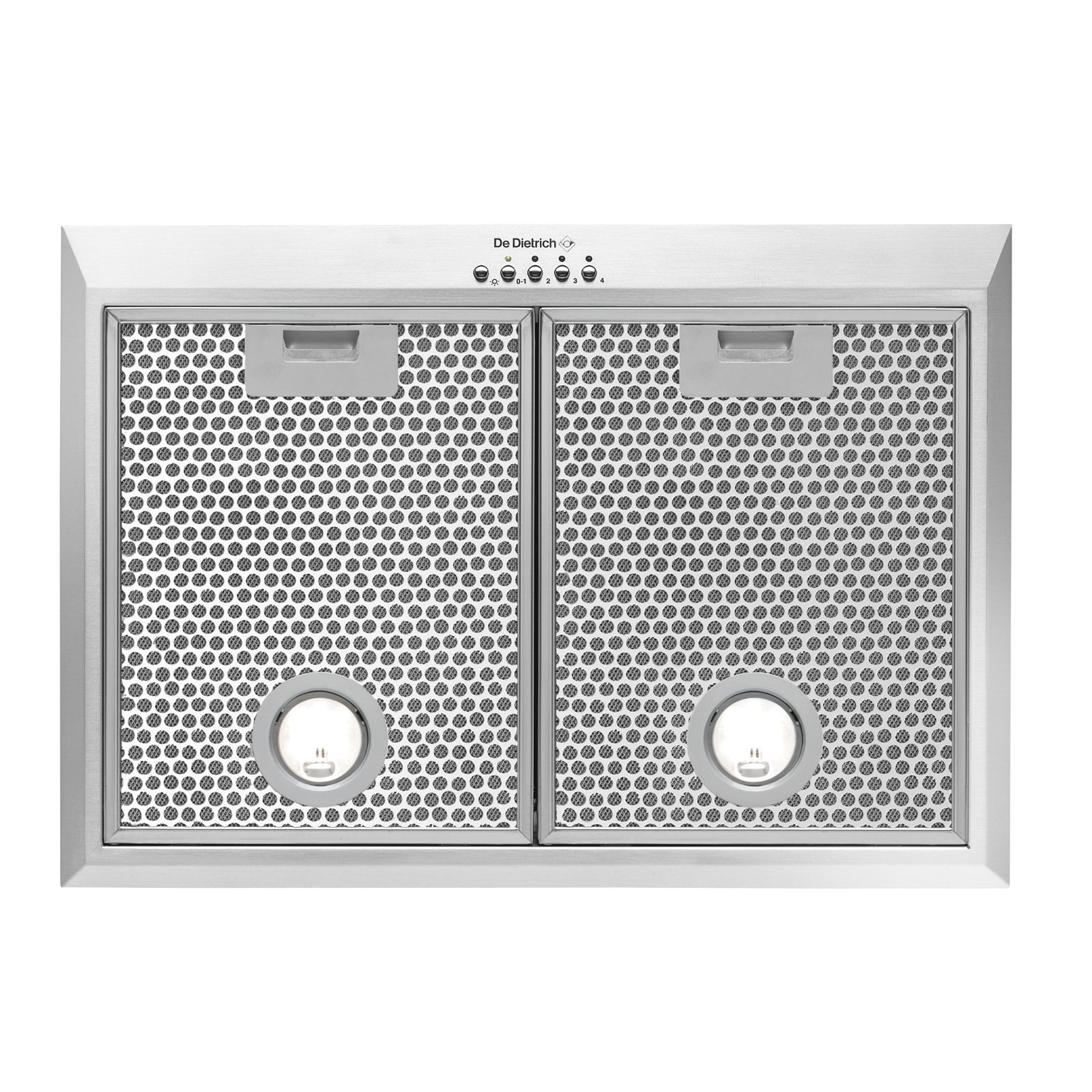

Canopy hood

DHG576XP1
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 99.3ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;
Fascination
Collection

This canopy hood’s halogen lighting system provides a perfect level of light that is natural, powerful and evenly distributed across your cooking surface, allowing you to focus all the attention you require on your cooking.

colors
Absolute Black
zoom
Delayed Stop Function
This system has been designed to totally eradicate any residual postcooking vapours. The hood continues to function for ten minutes after the last speed is selected, then turns itself off automatically.
Boost Function
When selected, this feature immediately sets the hood to work at maximum extraction speed for even greater efficiency when large amounts of vapour or cooking aromas are present.

Download :

Main Specifications
Type of hoods:
Filtering unit
Output air extraction (m3/h):
580
Lighting
Number of lights:
2
Type of bulb:
Halogen
Lighting power (W):
20
Performances
Number of speed positions:
4
Acoustic power level (recycling) (dBA):
48
Max recycling air extraction (m3/h):
425
Boost position output recirculating (m3/h):
455
Boost position air extraction (m3/h):
670
Minimum evacuation sound level (dBA):
57
Max evacuation sound level (dBA):
71
Filtering
Number of filters:
2
No-return airflow clap:
Yes
Accessories:
Characoal filter
Dimensions
Dimensions of product HxWxD (mm):
370 X 530 X 342
Dimensions of the packed product HxWxD (mm):
460X640X440
Gross weight (kg):
11
Net weight (kg):
8.5
Connections
Voltage (V):
220
Frequency (Hz):
50
Current (A):
10
Connection rating (W):
290 W
